Optický kabel 8K HDMI 48 Gb/s Ultra High Speed HDMI 2.1, 1m

This adapter can be used to extract the audio signal from an HDMI transmission. While the image signal is displayed on a TV or monitor, the audio signal can be sent digital (S/PDIF) and analog (stereo) to other devices such as headphones or a surround receiver.

Specification
• Connector:
  Input:
    1 x HDMI A 19 pin female
    1 x DC Power 5 V
  Output:
    1 x HDMI A 19 pin female
    1 x 3.5 mm 3 pin Stereo jack female (Stereo Audio)
    1 x TOSLINK (S/PDIF)
    1 x RCA (S/PDIF)
• Switchable between stereo (2.0) and surround (5.1)
• Compatible with High Speed HDMI, 3D and HDCP 1.4
• Output with HDMI repeater function
• Resolution up to 3840 x 2160 @ 30 Hz (8-bit), 1920 x 1080 @ 60 Hz (12-bit)
• Video bandwidth up to 300 MHz / 3 Gb/s per channel, 9 Gb/s max.
• Supports all common 2.0 and 5.1 audio formats: LPCM,  Dolby Digital, DTS Audio
• Supported sample rates: 16 / 20 / 24 bit, 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
  (depending on the system and the connected devices)
• CEC and HDMI audio routed to the output (pass-through)
• Audio DAC CS4344, 24 bit / 192 kHz
• Robust metal housing
• Power consumption: max. 2.5 W
• Dimensions (LxWxH): 71 x 61 x 21 mm
• Length: power cable USB Type-A > DC ca. 50 cm

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
    inside: ø ca. 2.1 mm
    outside: ø ca. 5.5 mm
    length: ca. 9 mm

System requirements
• A free HDMI A female port

Package content

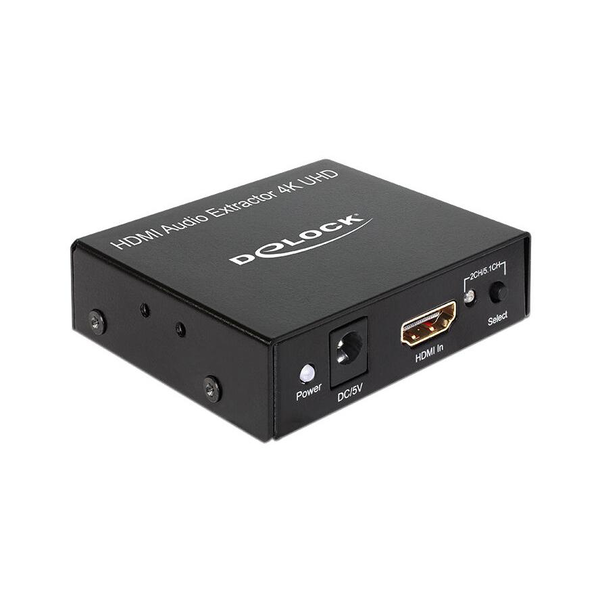

• HDMI Audio Extractor
• Mounting brackets and screws
• USB power cable
• Power supply 5 V
• User manual

Package
• Box
