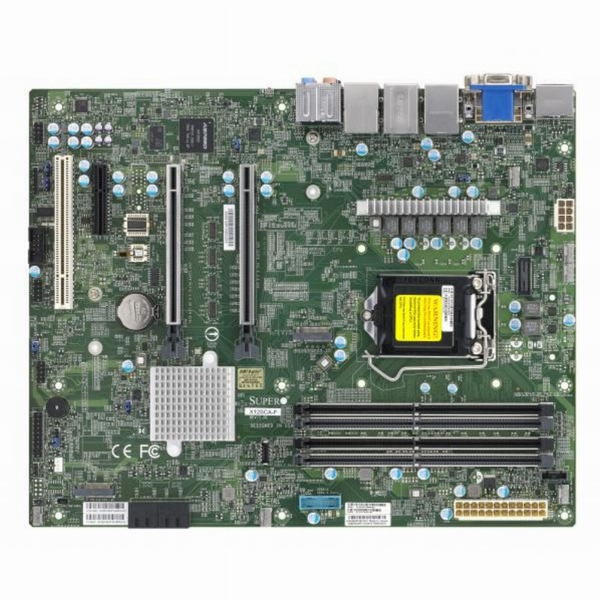

Supermicro X12SCA-F Intel W480 LGA 1200 (Socket H5) ATX

10th Generation Intel® Core™ i9/Core™ i7/Core™i5/Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP support Up to 125W TDP Intel® W480 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots 1 PCI-E 3.0 x4, 2 PCI-E 3.0 x16 slots (16/NA or 8/8) 1 - 5V PCI 32bit M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 M.2 Form Factor: 2280/22110 M.2 Key: M-Key 1 DP (DisplayPort) port, 1 HDMI port, 1 DVI - D port, 1 VGA port, VGA port is dedicated for IPMI Intel® W480 controller for 4 SATA3 (6 Gbps) ports, RAID 0,1,5,10 Single LAN with Intel® PHY I219LM LAN controller for AMT/vPro Single LAN with Intel® Ethernet i225LM
