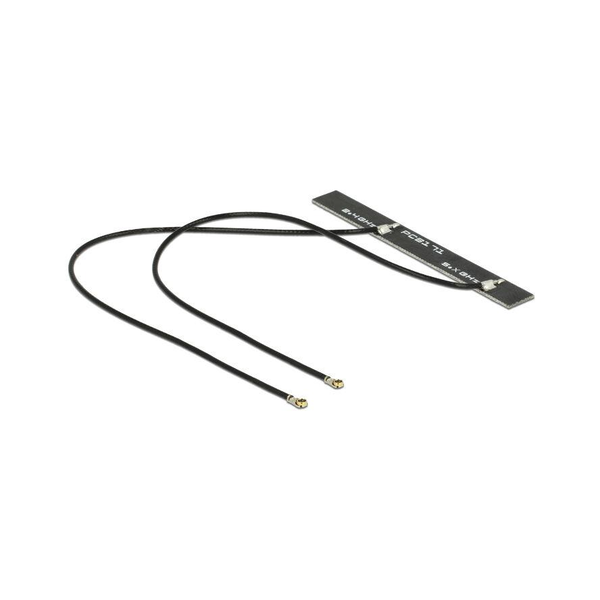

Anténa Delock 89454
0.0
0 hodnocení 345 Kč
Bez DPH: 285 Kč
U dodavatele
Doručení: 13 pracovních dnů
Bezpečná platba
SSL šifrování
Zákaznická podpora
Po-Pá 8:00 – 16:00
Garancia: 4 Hónap
This WLAN twin antenna is designed to integrate into your devices with MHF IV connectors. These are two separate antennas with common ground.
Műszaki adatok
• Connectors: 2 x miniature RF coaxial plug MHF IV (IPEX), MXHP32 (HSC) compatible
• Frequency range:
2400 - 2500 MHz
5150 - 5875 MHz
• Gain: 5 dBi
• Impedance: 50 Ohm
• Cable type: coaxial
• Cable attenuation:
3.20 dB @ 2.4 GHz per meter
5.05 dB @ 5.0 GHz per meter
• Cable diameter: ca. 1.13 mm
• Cable length: ca. 150 mm
• Operating temperature: -10 °C ~ 50 °C
• Dimensions (LxWxH): ca. 61.6 x 7.0 x 1.6 mm
Rendszerkövetelmények
• Device with free MHF IV connector
A csomag tartalma
• Antenna
Csomag
• Poly bag
Gyártó: Delock
